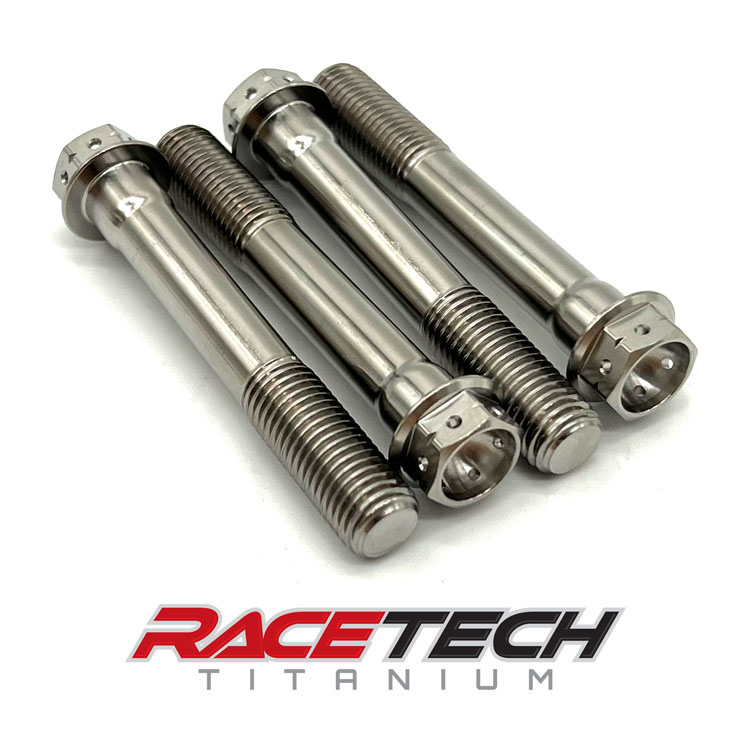

Kawasaki Titanium M10x70 Front Brake Caliper Mount Bolts (Race Spec)

Description

Kawasaki Titanium Front Brake Caliper Mount Bolts for attaching the front brake calipers to the fork legs

Hex Size – 12mm
Hex Height – 5.5mm
Flange Diameter – 16.0mm
Flange Thickness – 1.3mm
Thread Length – 21mm
Thread Pitch – 1.25
Drilled for Safety Wire
Dished Head
Cut Shoulder

– Reduce Weight (Titanium is 45% lighter than the stock steel parts)
– Corrosion Resistant
– 6Al-4v Titanium
– CNC Machined
– Rolled Threads

OEM Part #s – 92153-1890, 09103-103-92000, 09103-104-50000, 904011001200, 901051044000, 901051039700

Includes:
(4) Titanium Hex Head Flange Bolt (Race Spec)

Fits These Models:

Kawasaki
Kawasaki Ninja 1000 SX 2020-2025
Kawasaki Versys 1000 2019-2024
Kawasaki Versys 1100 2025
Kawasaki Z1000 2014-2016
Kawasaki Z1000SX 2011-2013
Kawasaki Z1000SX 2014-2016

Suzuki
Suzuki DL1000 V-Strom 2013-2019
Suzuki DL1050 V-Strom 2020-2024
Suzuki GSX-R1000 2005-2006
Suzuki GSX-R1000 2007-2008
Suzuki GSX-R1000 2009-2011
Suzuki GSX-R1000 2012-2016
Suzuki GSX-R1000 2017-2024
Suzuki GSX-R600 2006-2007
Suzuki GSX-R600 2008-2010
Suzuki GSX-R600 2011-2024
Suzuki GSX-R750 2006-2007
Suzuki GSX-R750 2008-2010
Suzuki GSX-R750 2011-2024
Suzuki GSX-S1000 2015-2020
Suzuki GSX-S1000F 2015-2021
Suzuki GSX-S1000GT 2022-2024
Suzuki GSX-S750 2017-2023
Suzuki GSX1300 B-King 2007-2012
Suzuki GSX1300R Hayabusa 2008-2012
Suzuki GSX1300R Hayabusa 2013-2020
Suzuki Katana 2019-2024

Triumph
Triumph Street Scrambler 2019-2024

Yamaha
Yamaha MT-01 2005-2009
Yamaha MT-09 2013-2016
Yamaha MT-09 2017-2020
Yamaha MT-09 Tracer 2015-2017
Yamaha MT-09 Tracer 2018-2020
Yamaha MT-09 Tracer 2021-2024
Yamaha MT-10 2016-2021
Yamaha TMAX 560 2020-2024
Yamaha XSR900 2016-2021
Yamaha YZF-R1 2004-2006
Yamaha YZF-R1 2009-2014
Yamaha YZF-R1 2015-2024
Yamaha YZF-R1M 2015-2024
Yamaha YZF-R6 2005 – 2006-2007
Yamaha YZF-R6 2008-2016
Yamaha YZF-R6 2017-2021
Yamaha YZF-R7 2021-2024
