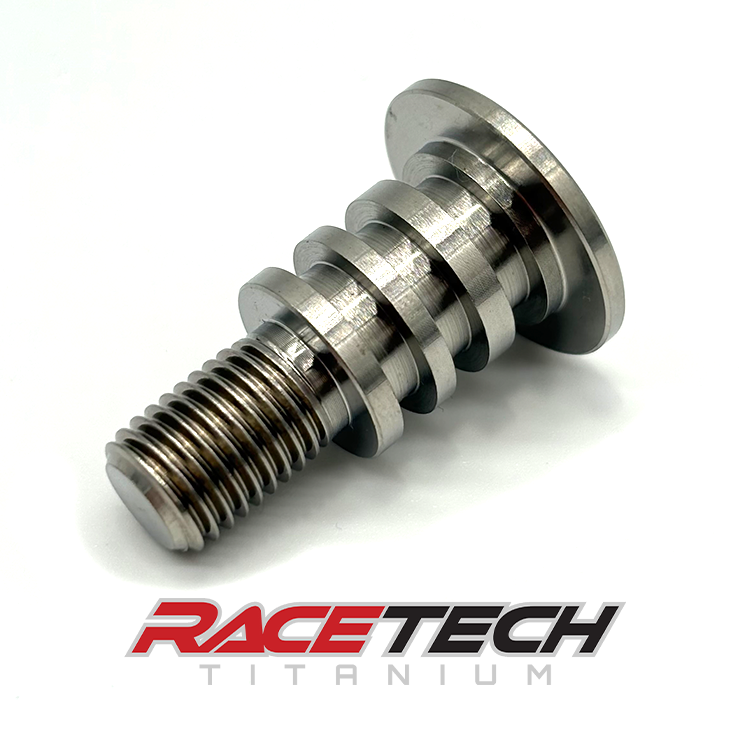

Titanium M10x1.25×32.5 Flat Head Bolt (14.9×17.5 Shoulder)
$30.91
29 In Stock
Description
Titanium M10x1.25×32.5 Flat Head Bolt (14.9×17.5 Shoulder)
Reduce Weight (Titanium is 45% lighter than the stock steel parts)
Corrosion Resistant
Hex Size – 8mm
Flange Diameter – 23mm
Flange Height – 2mm
Shoulder Diameter- 14.9mm
Shoulder Height – 17.5mm
Shoulder Diameter#2 – 11mm
Shoulder Height#2 – 17.5mm
Thread Size – M10x1.25
Thread Length – 14.5mm
– 6Al-4v Titanium
– CNC Machined
– Heat Treated
– Rolled Threads
Includes:
(1) Titanium M10x1.25×32.5 Flat Head Bolt (14.9×17.5 Shoulder)
Additional information
| Weight | .5 oz |
|---|---|
| Dimensions | 2 × 2 × 1 in |
| Bolt Type | Shoulder Bolt |
| Size (Metric) | |
| Thread Pitch | 1.25 |
| Length (Metric) | 30mm |
