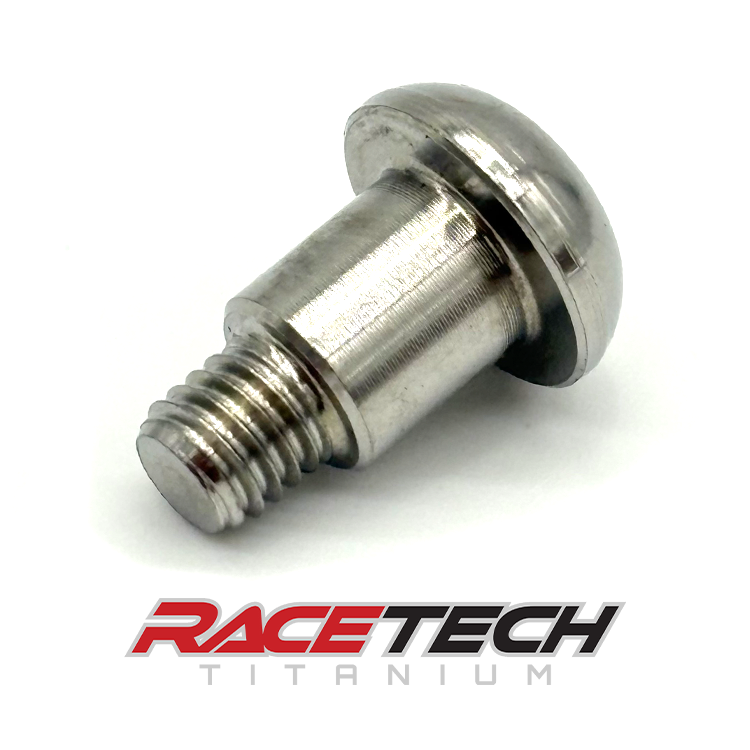

Titanium M5x0.8×12.5 Button Head Bolt (7×7.5 Shoulder)
$5.72
35 In Stock
Description
Titanium M5x0.8×12.5 Button Head Bolt (7×7.5 Shoulder)
Hex Size – 5mm
Flange Diameter – 11.4mm
Flange Height – 3.75mm
Shoulder Diameter- 7mm
Shoulder Height – 7.5mm
Thread Size – M5x0.8
Thread Length – 4.85mm
– Aerospace Grade Titanium
– CNC Machined
– Heat Treated
– Rolled Threads
Includes:
(1) Titanium M5x0.8×12.5 Button Head Bolt (7×7.5 Shoulder)
Additional information
| Weight | 2 oz |
|---|---|
| Dimensions | 1 × .24 × .24 in |
| Bolt Type | Shoulder Bolt |
| Size (Metric) | |
| Thread Pitch | 0.8 |
| Length (Metric) | 12.5mm |
Related products
-

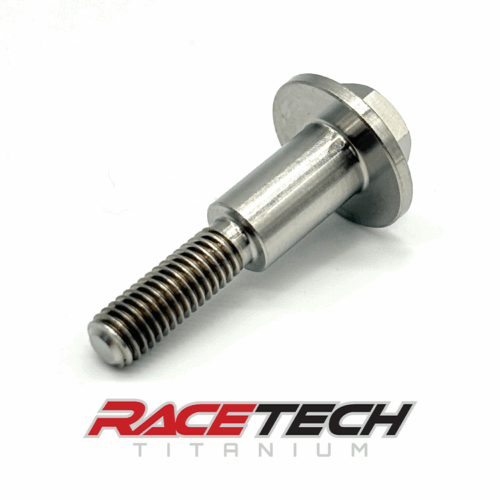

Titanium M5x0.8×27.35 Hex Head Flange Bolt (7.4×19.35 Shoulder)
