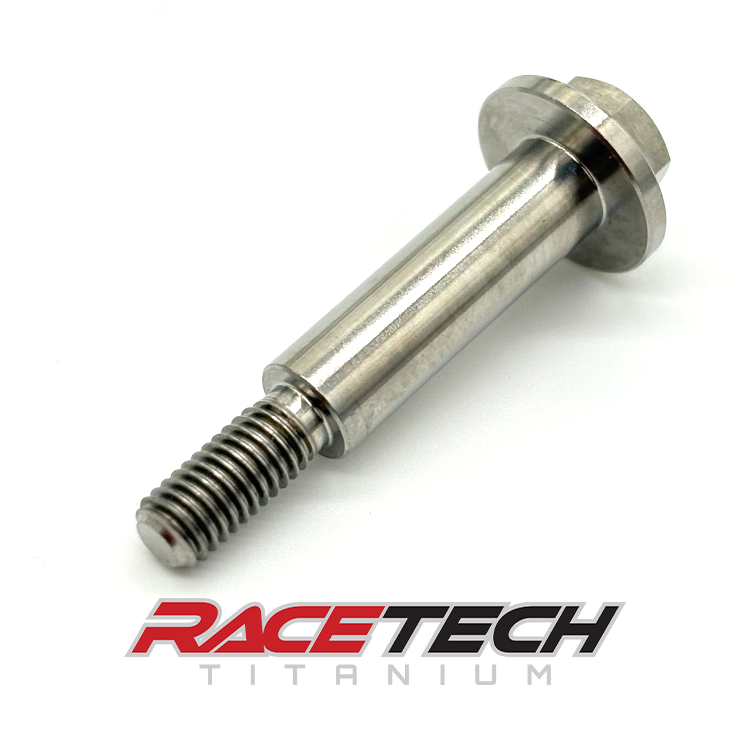

Titanium M5x0.8×34.32 Hex Head Flange Bolt (6.93×22.6 Shoulder)
$17.50
8 In Stock
Description
Titanium M5x0.8×34.32 Hex Head Flange Bolt (6.93×22.6 Shoulder)
– Aerospace Grade Titanium
– CNC Machined
– Heat Treated
– Rolled Threads
Hex Size – 8mm
Flange Diameter – 14mm
Flange Height – 1.76mm
Shoulder Diameter- 6.93mm
Shoulder Height – 22.6mm
Thread Size – M5x0.8
Thread Length – 11.2mm
Includes:
(1) Titanium M5x0.8×34.32 Hex Head Flange Bolt (6.93×22.6 Shoulder)
Additional information
| Weight | 2 oz |
|---|---|
| Dimensions | 2 × .3 × .3 in |
| Bolt Type | Shoulder Bolt |
| Bolt Head Type | Hex Head Flange |
| Size (Metric) | |
| Thread Pitch | 0.8 |
| Length (Metric) | 42.5mm |
