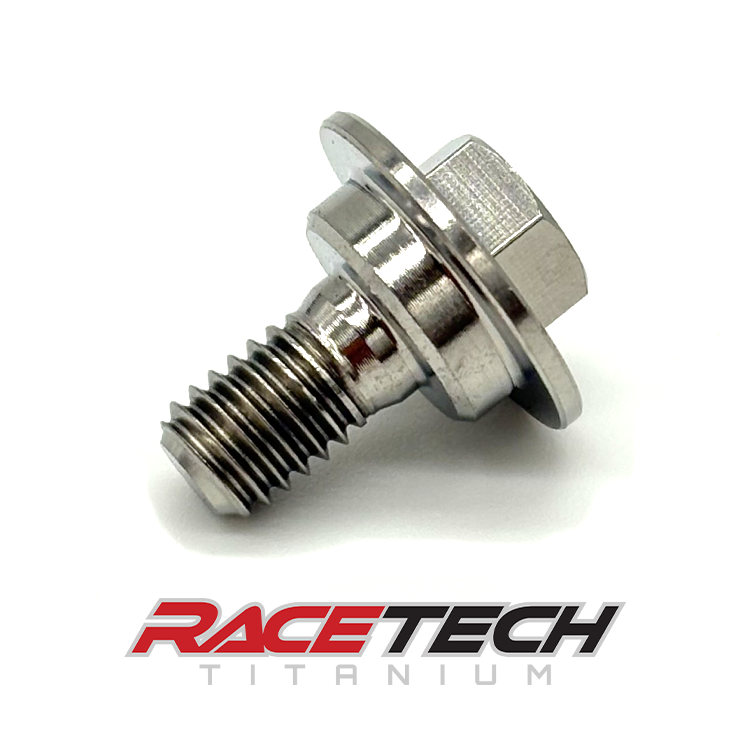

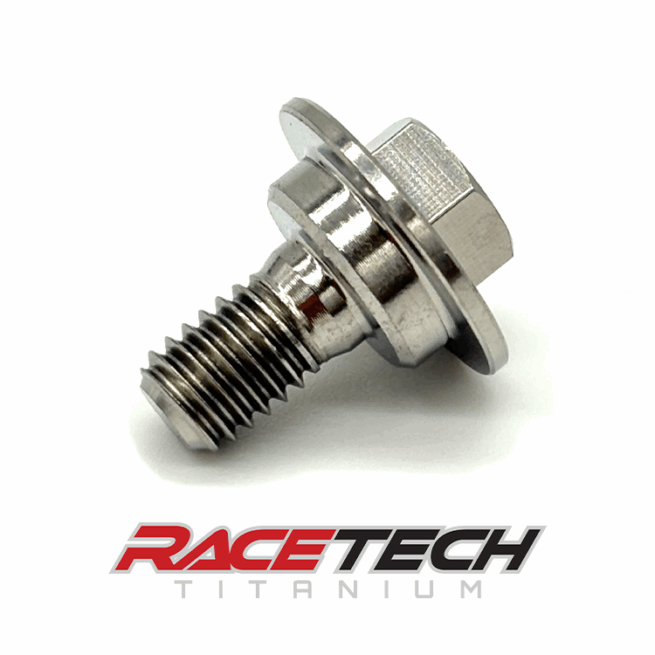

Titanium M6x1.0x13.5 Hex Head Flange Bolt (10.9×2.9 Shoulder)
$11.60
97 In Stock
Description
Titanium M6x1.0x13.5 Hex Head Flange Bolt (10.9×2.9 Shoulder)
– Aerospace Grade Titanium
– CNC Machined
– Heat Treated
– Rolled Threads
Hex Size – 8mm
Flange Diameter – 16mm
Flange Height – 1.15mm
Shoulder Diameter- 10.9mm
Shoulder Height – 2.9mm
Thread Size – M6x1.0
Thread Length – 9.8mm
Includes:
(1) Titanium M6x1.0x13.5 Hex Head Flange Bolt (10.9×2.9 Shoulder)
Additional information
| Weight | .5 oz |
|---|---|
| Dimensions | 2 × .3 × .3 in |
| Bolt Type | Shoulder Bolt |
| Bolt Head Type | Hex Head Flange |
| Size (Metric) | |
| Thread Pitch | 0.8 |
| Length (Metric) | 42.5mm |
