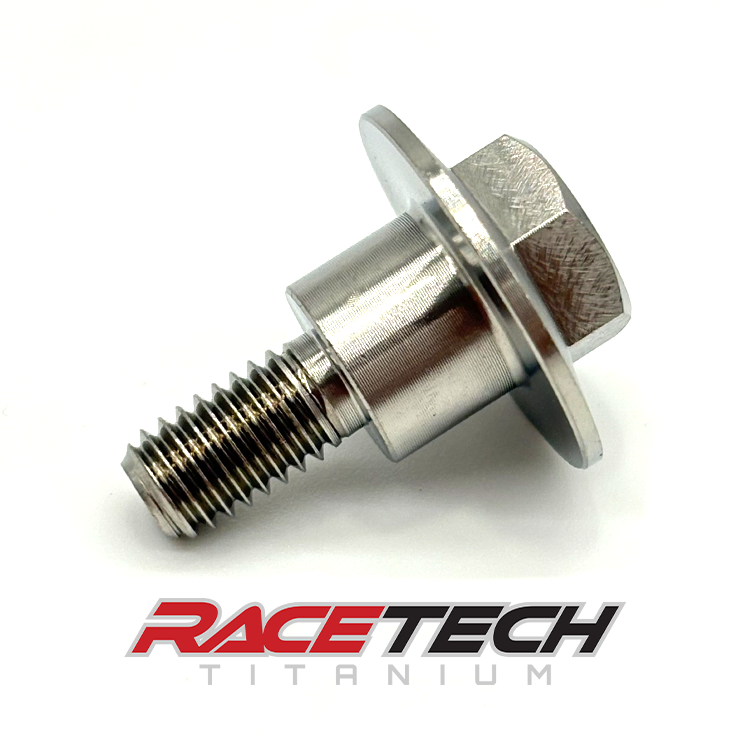

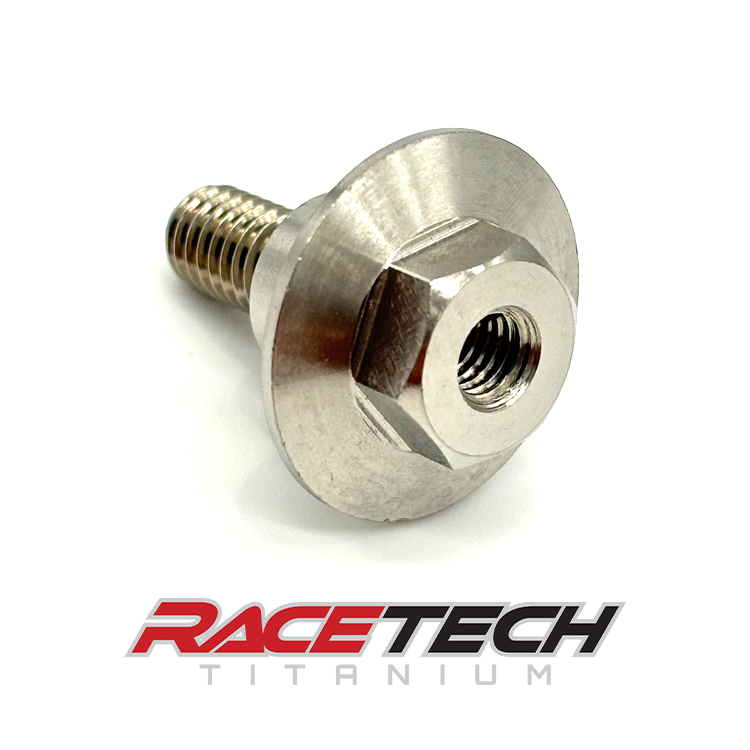

Titanium M6x1.0x18 Hex Head Flange Bolt (9.9×7.35 Shoulder)
$13.92
50 In Stock
Description
Titanium M6x1.0x18 Hex Head Flange Bolt (9.9×7.35 Shoulder)
– Aerospace Grade Titanium
– CNC Machined
– Heat Treated
– Rolled Threads
Hex Size – 10.25mm
Flange Diameter – 19.9mm
Flange Height – 2.15mm
Shoulder Diameter- 9.9mm
Shoulder Height – 7.35mm
Thread Size – M6x1.0
Thread Length – 10.85mm
Includes:
(1) Titanium M6x1.0x18 Hex Head Flange Bolt (9.9×7.35 Shoulder)
Additional information
| Weight | .5 oz |
|---|---|
| Dimensions | 2 × 1 × .24 in |
| Length (Metric) | 11mm |
| Metric or Standard | Metric |
| Size (Metric) | |
| Fastener Type | Titanium Bolt |
| Bolt Type | Shoulder Bolt |
