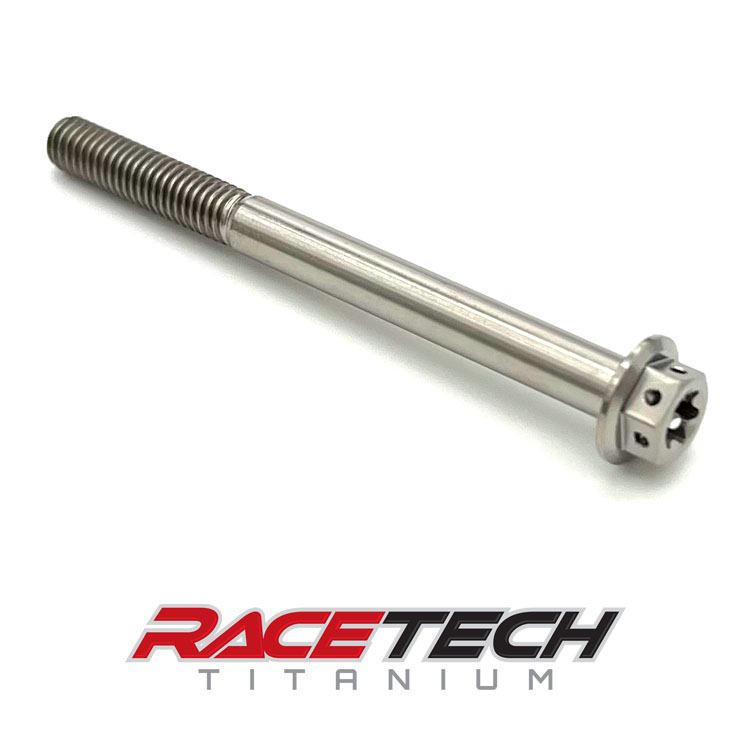

Titanium M6x70 Dual Drive Race Spec Bolt
$16.23
Temporarily Out of Stock – Place Order to Backorder and Will Ship When Available
Description
Titanium M6x1.0x70 dual drive, race spec flange bolt drilled for safety wire. Available in several anodized colors for FREE!
Hex Size – 8mm
Hex Height – 3.5mm
Flange Diameter – 12mm
Flange Thickness – 1.5mm
Shoulder Length – 45mm
Thread Length – 25mm
Thread Pitch – 1.0
Safety Wire Hole – 1.4mm
Torx Size – T30
– Reduce Weight (Titanium is 45% lighter than the stock steel parts)
– Corrosion Resistant
– 6Al-4v Titanium
– CNC Machined
– Rolled Threads
Includes:
(1) Titanium M6-1.0x70mm Hex Head Flange, Dual Drive, Race Spec Bolt
Additional information
| Weight | .3 oz |
|---|---|
| Dimensions | 3 × .5 × .5 in |
| Bolt Type | Dual Drive, Hex Flange, Race Spec |
| Length (Metric) | 70mm |
| Metric or Standard | Metric |
| Size (Metric) | |
| Thread Pitch | 1.0 |
| Fastener Type | Titanium Bolt |
