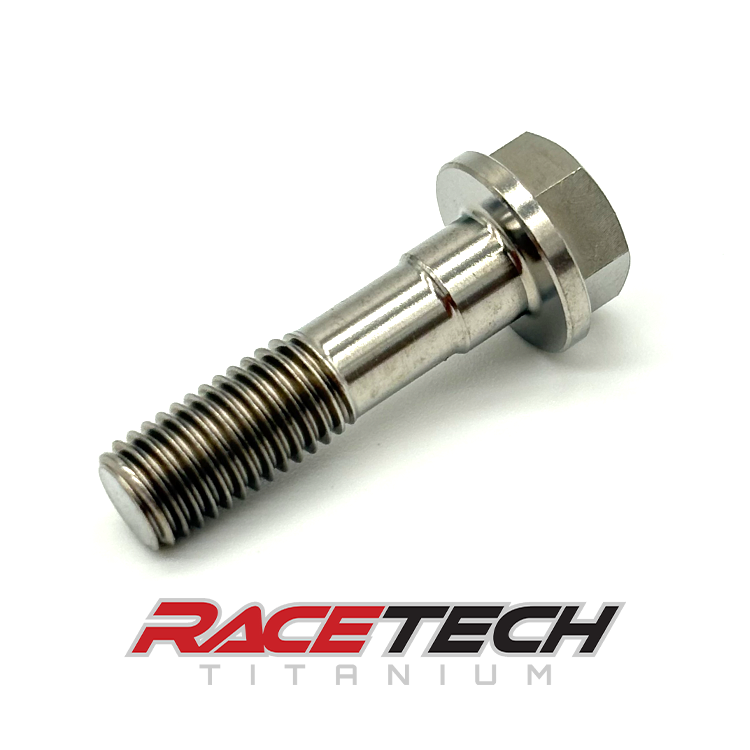

Titanium M7x1.0x26.85 Hex Head Flange Bolt (7×5 Shoulder)
$11.79
5 In Stock
Description
Titanium M7x1.0x26.85 Hex Head Flange Bolt (7×5 Shoulder)
Hex Size – 10mm
Flange Diameter – 13.25mm
Flange Height – 1.75mm
Shoulder Diameter- 7mm
Shoulder Height – 5mm
Thread Size – M7x1.0
Thread Length – 21.85mm
– Reduce Weight (Titanium is 45% lighter than the stock steel parts)
– Corrosion Resistant
– 6Al-4v Titanium
– CNC Machined
– Rolled Threads
Includes:
(1) Titanium M7x1.0x26.85 Hex Head Flange Bolt (7×5 Shoulder)
Additional information
| Weight | .1 oz |
|---|---|
| Dimensions | 1.5 × .5 × .5 in |
| Size (Metric) | |
| Thread Pitch | 1.0 |
| Length (Metric) | 27mm |
