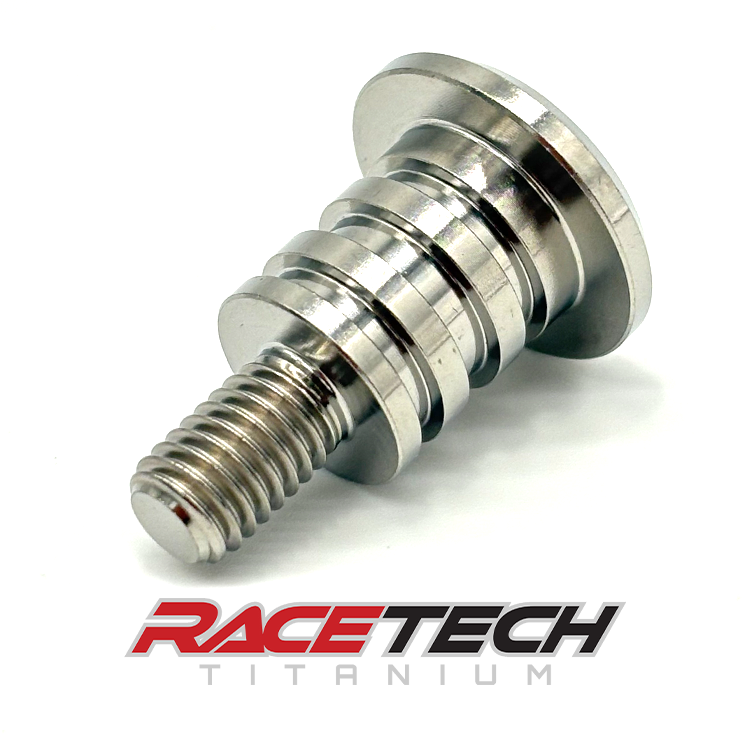

Titanium M8x1.25×29.75 Flat Head Bolt (15×17.25 Shoulder)
$40.00
4 In Stock
Description
Titanium M8x1.25×29.75 Flat Head Bolt (15×17.25 Shoulder)
Reduce Weight (Titanium is 45% lighter than the stock steel parts)
Corrosion Resistant
Hex Size – 6mm
Flange Diameter – 23mm
Flange Height – 3.5mm
Shoulder Diameter- 15mm
Shoulder Height – 17.25mm
Shoulder Diameter#2- 12.45mm
Shoulder Height #2- 17.25mm
Thread Size – M8x1.25
Thread Length – 12.5mm
– 6Al-4v Titanium
– CNC Machined
– Heat Treated
– Rolled Threads
Includes:
(1) Titanium M8x1.25×29.75 Flat Head Bolt (15×17.25 Shoulder)
Additional information
| Weight | .5 oz |
|---|---|
| Dimensions | 1 × 1 × 1 in |
| Bolt Type | Shoulder Bolt |
| Size (Metric) | |
| Thread Pitch | 1.0 |
| Length (Metric) | 17mm |
